Woven vs. Welded Wire Mesh

In Summy, Suitability for Different Needs Woven wire: Preferred for agricultural or large properties. Welded wire: Ideal for residential or decorative purposes.



Wire mesh is a versatile material used across countless industries and applications. But when faced with choosing between Woven Wire Mesh and Welded Wire Mesh, how do you know which is the best fit? While they might look similar at first glance, their construction, characteristics, and ideal uses differ significantly.



The Fundamental Difference: Construction

The primary distinction lies in how the individual wires intersect:
Woven Wire Mesh: Imagine the process of weaving fabric. Woven mesh is created similarly, with warp wires (running lengthwise) and weft wires (running crosswise) interlaced by passing over and under each other. This creates a flexible sheet without fixed joints.

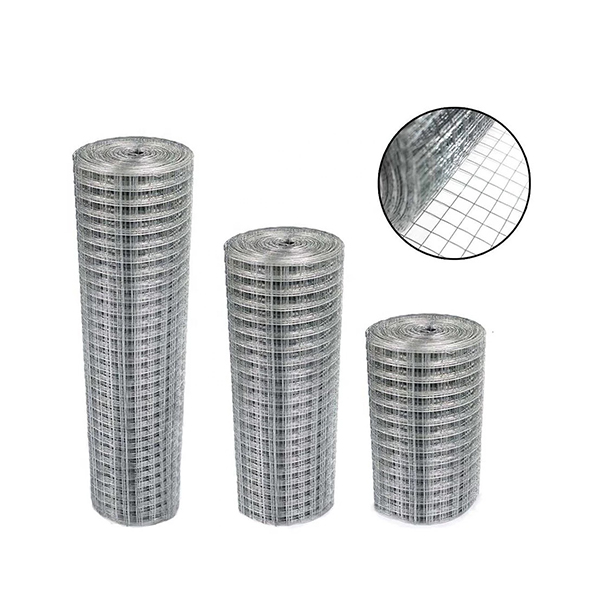

Welded Wire Mesh: In this type, wires are laid out in a grid pattern and then permanently fused together at each intersection using electrical resistance welding. This results in a rigid, uniform structure.



Hydroponic green fodder: Rigidity and Strength:



The welded joints create a strong, stable structure. Welded mesh maintains its precise opening size and shape even when subjected to stress or load. This inherent rigidity makes it excellent for applications demanding structural integrity and a fixed form.

Woven Wire Mesh: Flexibility and Adaptability:

Because the wires are not welded, woven mesh is inherently pliable. It can conform to curves and contours, bend without breaking, and absorb impacts more effectively. The lack of fixed bonds allows for slight movement at the intersections, contributing to its adaptability.



When to Choose Woven Wire Mesh: Flexibility in Action

The standout features of woven mesh – flexibility and adaptability – make it the preferred choice for a variety of applications:

Filtration and Sieving: The looming process allows for precise control over the weave pattern and aperture size, making woven mesh ideal for fine filtration, straining liquids, and separating solids with high accuracy.
Screen Printing: The consistency and ability to achieve fine detail make woven mesh a staple in the screen printing industry.
Architectural & Decorative Uses: For facades, infill panels, and design elements, woven mesh offers aesthetic appeal combined with functional benefits like light diffusion, ventilation, and the ability to be shaped into unique forms.
Applications Requiring Conformance: Anywhere the mesh needs to bend, curve, or absorb dynamic forces (like certain types of screening or specialized fencing), woven mesh excels.



When to Choose Welded Wire Mesh: Strength You Can Rely On

The rigidity and strength derived from the fused intersections make welded wire mesh suitable for:

Fencing and Enclosures: Ideal for perimeter fencing, animal enclosures, security cages, and property boundaries where maintaining shape and providing a strong barrier is crucial. Think residential fencing, industrial partitions, or machine guards.
Structural Support: Used in construction for concrete reinforcement (though often a heavier gauge), creating gabions, or providing support in shelving and racking systems.
Static Load-Bearing Applications: Anywhere the mesh needs to hold its shape under consistent pressure or weight without flexing.



Making the Right Choice for Your Needs

So, which mesh reigns supreme? Neither – it entirely depends on your project's specific requirements:

Choose Woven Wire Mesh if your priority is flexibility, adaptability, fine filtration, or conforming to curved surfaces. It excels in dynamic applications or where aesthetic shaping is important.
Choose Welded Wire Mesh if your priority is rigidity, strength, maintaining a fixed shape, or load-bearing capability. It's the go-to for static applications requiring robust structure.

Both woven and welded wire mesh offer excellent durability and longevity when matched correctly to their environment and application.
